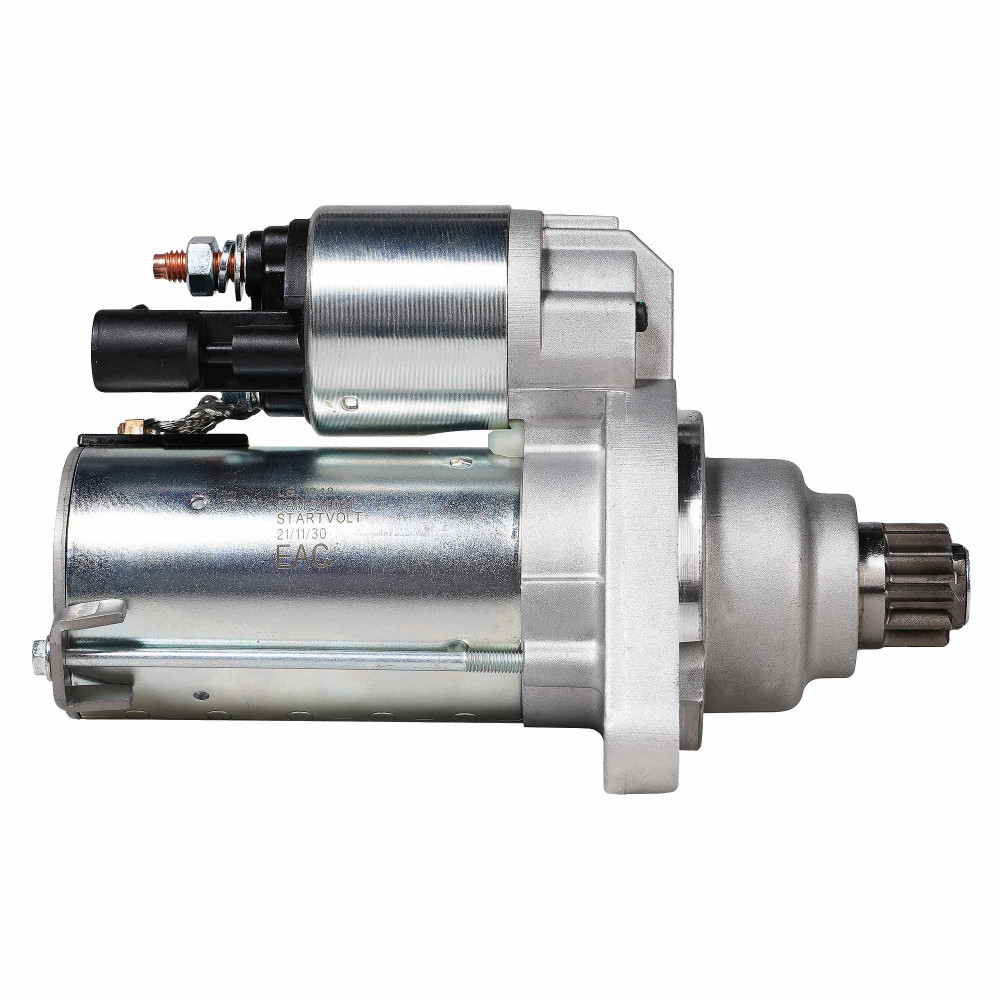

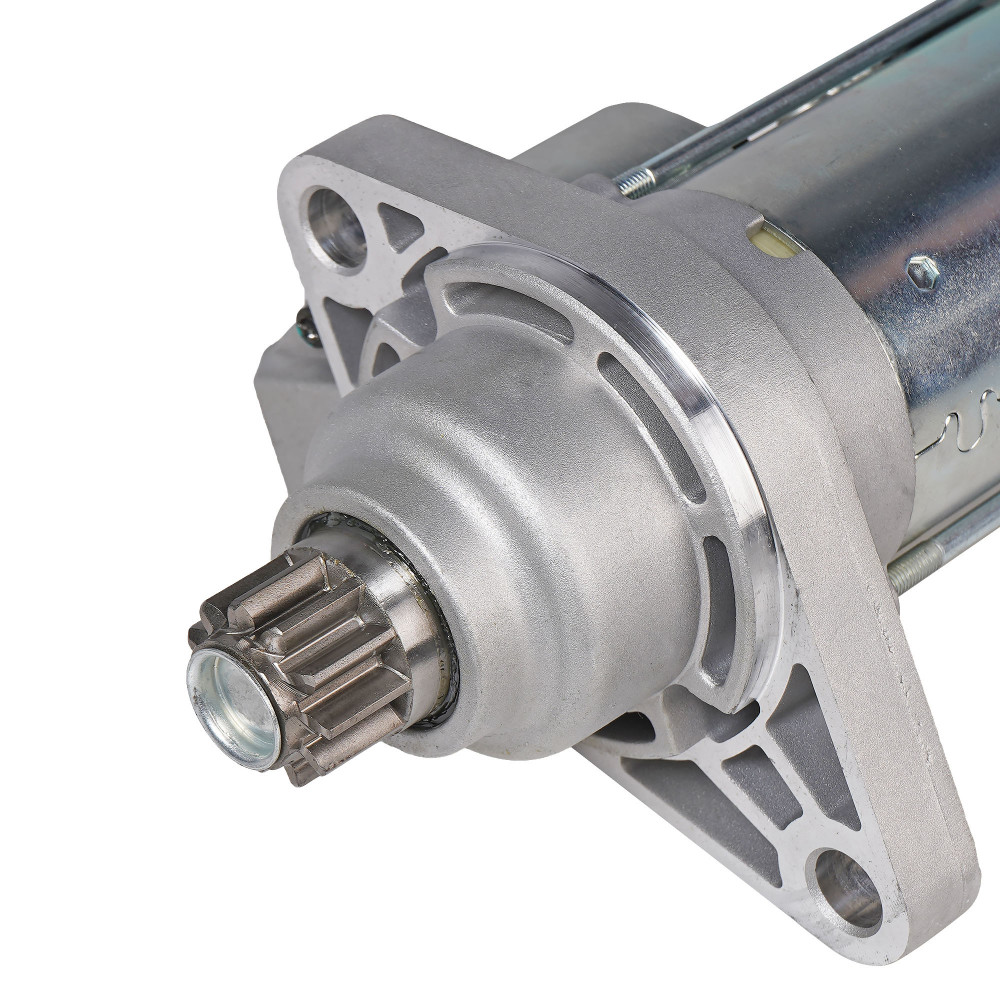

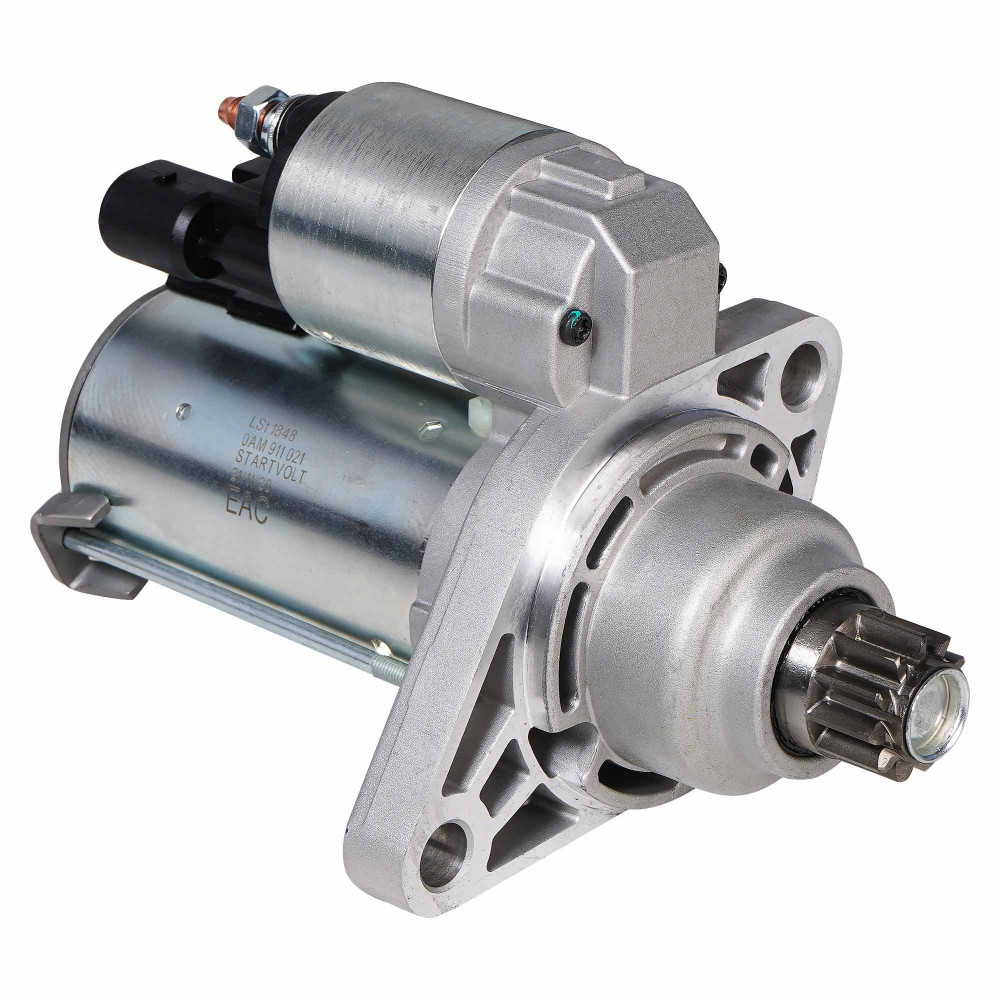

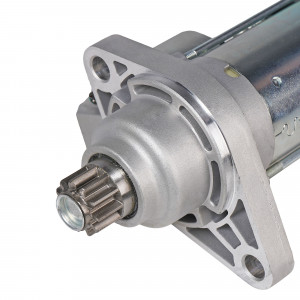

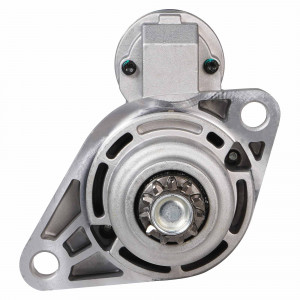

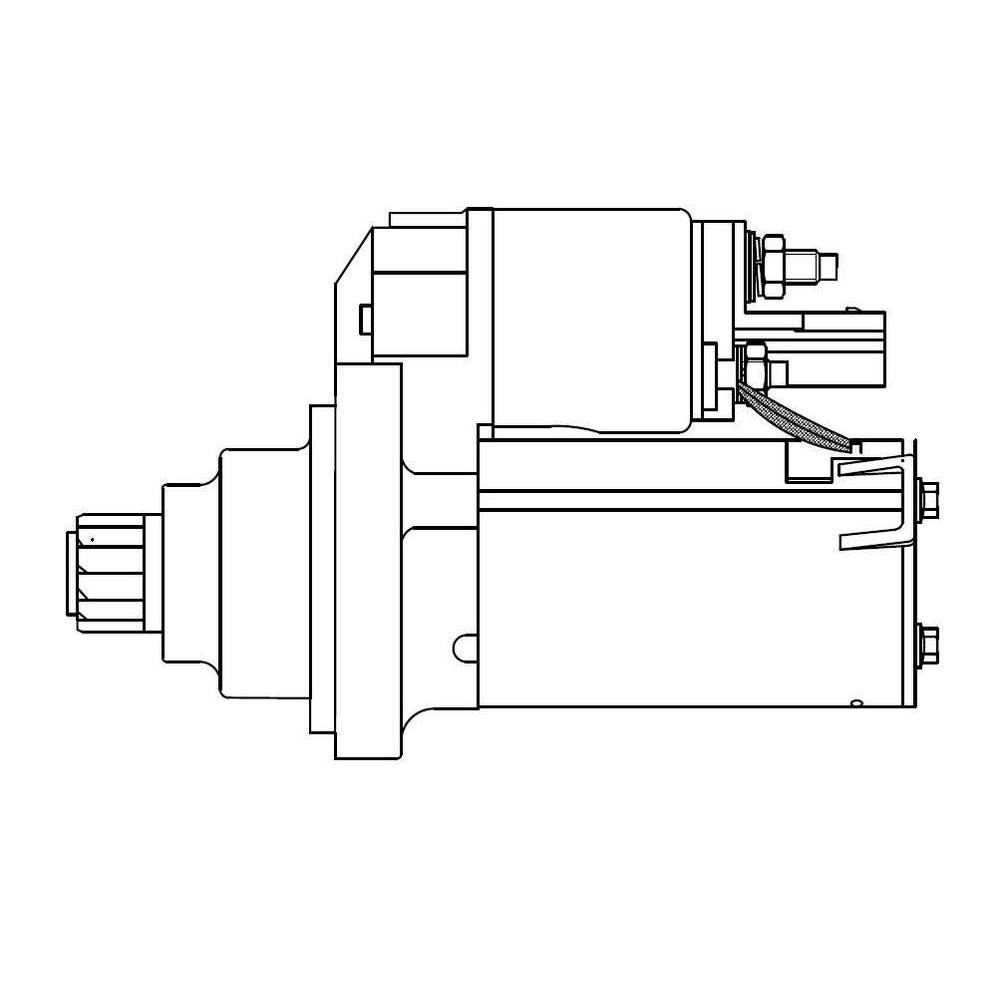

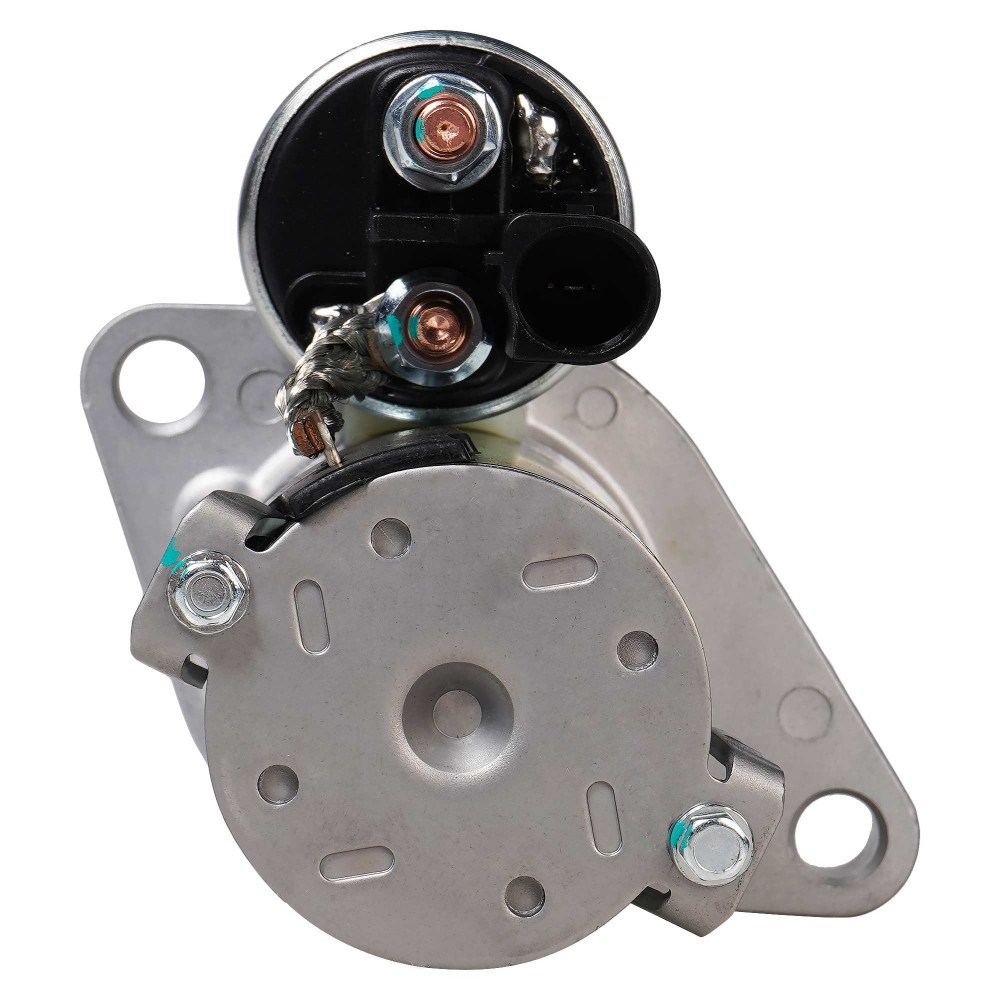

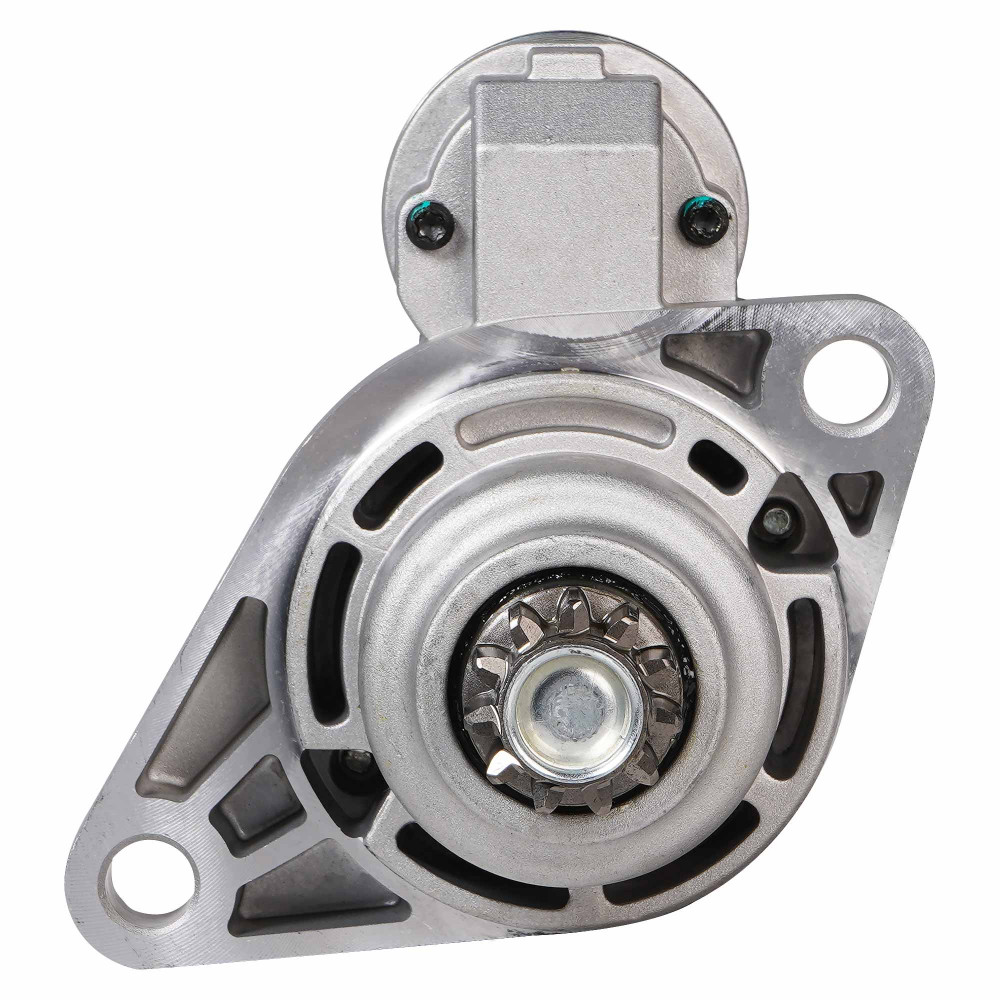

Стартер для автомобилей VAG Octavia A5 (04-) 1.6i/Octavia A8 (12-) 1.4TSI/Yeti (09-) 1.2TSI 1,2кВт
Код товара: LSt 1848
| Номинальное напряжение, В | 12 |
|---|---|
| Количество зубьев | 11 |
| Направление вращения | против часовой стрелки |
| Мощность, кВт | 1,2 |
| Тип клеммы 30 | M8 |
| Тип клеммы 45 | M8 |
| Тип клеммы 50 | 4,8x0,8 |
| Количество резьбовых соединений | 0 |
| Диаметр фланца, мм | 79 |
| Исходное положение шестерни, мм | 62,2 |
| Количество монтажных отверстий | 2 |
Производитель оставляет за собой право вносить изменения в конструкцию, дизайн (изменение внешнего вида) и комплектацию изделия без предварительного уведомления
OEM номер
0AM 911 021, 0AM 911 021 X, 0AM 911 023 K, 0AM 911 023 KX, 0AM 911 023 T, 0AM 911 023 TX, 438262, TS12ER22, TS12ER22M
Искать по VIN
Если у Вас остались вопросы по применяемости, заполните форму "Запрос по VIN", чтобы наши специалисты подобрали Вам запчасть.
Информация по применяемости изделий и сопутствующих товаров к конкретной модели автомобиля является справочной
AUDI
SEAT
SKODA
VW
| Производитель | Модель | Модификация | Год выпуска |
|---|---|---|---|
| AUDI | A1 (8X1, 8XK) | 1.4 TFSI | 2011 - 2018 |
| AUDI | A1 (8X1, 8XK) | 2.0 TFSI quattro | 2012 - н.в. |
| AUDI | A1 Sportback (8XA, 8XF) | 1.4 TFSI | 2011 - 2018 |
| AUDI | A3 (8P1) | 1.6 | 2003 - 2012 |
| AUDI | A3 (8V1, 8VK) | 1.2 TFSI | 2013 - 2015 |
| AUDI | A3 (8V1, 8VK) | 1.4 TFSI | 2012 - 2016 |
| AUDI | A3 (8V1, 8VK) | 1.4 TSI | 2014 - 2017 |
| AUDI | A3 (8V1, 8VK) | 1.8 TFSI | 2012 - 2016 |
| AUDI | A3 Convertible (8V7, 8VE) | 1.4 TFSI | 2014 - 2020 |
| AUDI | A3 Convertible (8V7, 8VE) | 1.8 TFSI | 2013 - 2016 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.4 TFSI | 2013 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.4 TSI | 2014 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.8 TFSI | 2013 - н.в. |
| AUDI | A3 Sportback (8VA, 8VF) | 1.2 TFSI | 2013 - 2015 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TFSI | 2012 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TFSI g-tron | 2013 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TSI | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.8 TFSI | 2012 - 2016 |
| AUDI | Q2 (GAB, GAG) | 1.0 TFSI | 2016 - 2020 |
| AUDI | Q2 (GAB, GAG) | 30 TFSI | 2018 - 2020 |
| AUDI | TT (8J3) | 1.8 TFSI | 2008 - 2014 |
| AUDI | TT Roadster (8J9) | 1.8 TFSI | 2008 - 2014 |
| SEAT | ALTEA (5P1) | 1.8 TFSI | 2007 - н.в. |
| SEAT | ALTEA (5P1) | 1.6 TDI | 2009 - н.в. |
| SEAT | ALTEA (5P1) | 1.6 | 2004 - н.в. |
| SEAT | ALTEA XL (5P5, 5P8) | 1.8 TFSI | 2007 - н.в. |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 TDI | 2009 - н.в. |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 | 2006 - н.в. |
| SEAT | IBIZA IV (6J5, 6P1) | 1.6 | 2008 - 2012 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.4 TSI | 2009 - 2015 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.4 TDI | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.2 TSI | 2010 - 2012 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.0 TSI | 2015 - 2017 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.6 | 2008 - 2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TSI Cupra | 2009 - 2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TSI | 2009 - 2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TDI | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.2 TSI | 2010 - 2015 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.0 TSI | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.6 | 2012 - 2015 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.4 TSI | 2012 - 2015 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.4 TDI | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.2 TSI | 2010 - 2015 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.0 TSI | 2015 - 2016 |
| SEAT | LEON (1P1) | 1.8 TSI | 2007 - 2012 |
| SEAT | LEON (5F1) | 1.8 TSI | 2013 - 2018 |
| SEAT | LEON (5F1) | 1.4 TSI | 2012 - 2020 |
| SEAT | LEON (5F1) | 1.4 TGI | 2013 - 2018 |
| SEAT | LEON (5F1) | 1.2 TSI | 2012 - 2020 |
| SEAT | LEON SC (5F5) | 1.8 TSI | 2013 - 2018 |
| SEAT | LEON SC (5F5) | 1.4 TSI | 2013 - 2018 |
| SEAT | LEON SC (5F5) | 1.2 TSI | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.8 TSI | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.4 TSI | 2012 - 2020 |
| SEAT | LEON ST (5F8) | 1.4 TGI | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.2 TSI | 2014 - 2020 |
| SEAT | TOLEDO IV (KG3) | 1.6 TDI | 2013 - 2015 |
| SEAT | TOLEDO IV (KG3) | 1.4 TSI | 2012 - 2019 |
| SKODA | FABIA II (542) | 1.4 TSI RS | 2010 - 2014 |
| SKODA | FABIA II Combi (545) | 1.4 TSI RS | 2010 - 2014 |
| SKODA | OCTAVIA II (1Z3) | 1.6 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.2 TSI | 2010 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.2 TSI | 2010 - 2013 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.6 TDI | 2013 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.4 TSI | 2012 - 2020 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.2 TSI | 2012 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.0 TSI | 2016 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.6 TDI | 2013 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.4 TSI | 2012 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.2 TSI | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.0 TSI | 2016 - 2020 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.4 TSI | 2012 - 2022 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.4 TDI | 2015 - 2019 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.2 TSI | 2015 - 2019 |
| SKODA | RAPID Spaceback (NH1) | 1.4 TSI | 2012 - 2019 |
| SKODA | RAPID Spaceback (NH1) | 1.4 TDI | 2015 - 2019 |
| SKODA | RAPID Spaceback (NH1) | 1.2 TSI | 2015 - 2019 |
| SKODA | RAPID Spaceback (NH1) | 1.0 TSI | 2017 - 2019 |
| SKODA | SUPERB II (3T4) | 1.8 TSI | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | 1.6 TDI | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 1.8 TSI | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 1.6 TDI | 2010 - 2015 |
| SKODA | SUPERB III (3V3) | 2.0 TDI | 2015 - н.в. |
| SKODA | SUPERB III (3V3) | 1.6 TDI | 2015 - н.в. |
| SKODA | SUPERB III Estate (3V5) | 2.0 TDI | 2015 - н.в. |
| SKODA | SUPERB III Estate (3V5) | 1.6 TDI | 2015 - н.в. |
| SKODA | YETI (5L) | 1.4 TSI | 2010 - 2017 |
| SKODA | YETI (5L) | 1.2 TSI | 2009 - 2017 |
| VW | BEETLE (5C1, 5C2) | 1.4 TSI | 2011 - 2019 |
| VW | BEETLE (5C1, 5C2) | 1.2 TSI | 2011 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | 1.4 TSI | 2011 - 2018 |
| VW | BEETLE Convertible (5C7, 5C8) | 1.2 TSI | 2011 - 2019 |
| VW | CC B7 (358) | 1.8 TSI | 2011 - 2016 |
| VW | CC B7 (358) | 1.4 TSI MultiFuel | 2011 - 2016 |
| VW | CC B7 (358) | 1.4 TSI | 2011 - 2016 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | 2008 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.2 TSI | 2009 - 2013 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.4 TSI | 2014 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.2 TSI | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.0 TSI | 2015 - 2020 |
| VW | GOLF VI (5K1) | 1.4 TSI | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.2 TSI | 2010 - 2012 |
| VW | GOLF VI Convertible (517) | 1.4 TSI | 2011 - 2016 |
| VW | GOLF VI Variant (AJ5) | 1.4 TSI | 2009 - 2013 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 TSI | 2012 - 2021 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 TGI CNG | 2013 - 2018 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 GTE Hybrid | 2014 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.2 TSI | 2012 - 2017 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.0 TSI | 2015 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TSI MultiFuel | 2013 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TSI | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TGI CNG | 2013 - 2018 |
| VW | GOLF VII Variant (BA5, BV5) | 1.2 TSI | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.0 TSI | 2015 - 2020 |
| VW | JETTA III (1K2) | 1.6 | 2004 - 2010 |
| VW | JETTA III (1K2) | 1.4 TSI | 2007 - 2010 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | 2011 - н.в. |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.2 TSI | 2010 - 2017 |
| VW | PASSAT ALLTRACK B8 Variant (3G5, CB5) | 2.0 TSI 4motion | 2015 - н.в. |
| VW | PASSAT B7 (362) | 1.8 TSI | 2010 - 2014 |
| VW | PASSAT B7 (362) | 1.4 TSI MultiFuel | 2010 - 2014 |
| VW | PASSAT B7 (362) | 1.4 TSI EcoFuel | 2010 - 2014 |
| VW | PASSAT B7 (362) | 1.4 TSI | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.8 TSI | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI MultiFuel | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI EcoFuel | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI | 2010 - 2014 |
| VW | PASSAT B8 (3G2, CB2) | 1.4 TSI | 2014 - н.в. |
| VW | PASSAT B8 Variant (3G5, CB5) | 2.0 TSI | 2014 - н.в. |
| VW | PASSAT B8 Variant (3G5, CB5) | 1.4 TSI | 2014 - н.в. |
| VW | PASSAT CC B6 (357) | 1.8 TSI | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | 1.4 TSI MultiFuel | 2011 - 2012 |
| VW | POLO V (6R1, 6C1) | 1.8 GTI | 2014 - н.в. |
| VW | POLO V (6R1, 6C1) | 1.4 GTI | 2010 - н.в. |
| VW | POLO V (6R1, 6C1) | 1.4 (6R1) | 2009 - 2014 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI 16V | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI | 2014 - н.в. |
| VW | POLO V (6R1, 6C1) | 1.0 TSI | 2014 - н.в. |
| VW | POLO V Saloon (602, 604, 612, 614) | 1.4 TSi | 2016 - н.в. |
| VW | SCIROCCO III (137, 138) | 1.4 TSI | 2008 - 2017 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI EcoFuel | 2009 - 2010 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI | 2006 - 2010 |
| VW | TOURAN (1T3) | 1.4 TSI EcoFuel | 2010 - 2015 |
| VW | TOURAN (1T3) | 1.4 TSI | 2010 - 2015 |
Паспорт изделия/гарантийный талон
Индивидуальный технический паспорт
Стартер, 1шт
-
![]()
